| Outdoor
/ Indoor IR Camera |
| |
Model
No. |
ASIC-I603 |
| Feature |
IR
Distance 15~20m (30 IR-LED)
Standard Lens: f4.3mm/F2.0/63°;
Option: f6.0mm/47.5°, f8.0mm/36.5° |
|
Sensor |
1/3"
Sony Super HAD Color CCD |
| TVL |
420 |
|
Min.
Illumination |
0.4Lux@F2.0
(W/O IR); 0Lux (W/IR) |
| Power
Supply |
DC
12V |
|
|
|

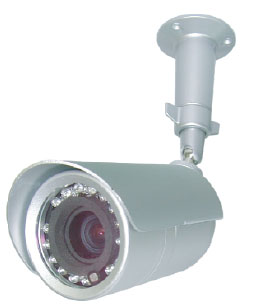

| Outdoor
/ Indoor Varifocal IR Camera |
| |
Model
No. |
ASIC-I638V |
| Feature |
15 IR LEDs;
Indoor: 30~40m; Outdoor:
20~30m
Standard Lens:f3.8~9.5mm/F1.2 Aspherical D/N
Lens / 74.2°~30.0°
|
|
Sensor |
1/3” SONY
Super HAD CCD |
| TVL |
480 |
|
Min.
Illumination |
0Lux (IR LED ON at 2Lux) |
| Power
Supply |
DC 12V |
|
|
|
|
Outdoor
/ Indoor Varifocal IR Camera (High Quality) |
|
Model
No. |
ASIC-I638VHQ |
| Feature |
15 IR LEDs;
Indoor: 30~40m; Outdoor:
20~30m
Standard Lens:f3.8~9.5mm/F1.2 Aspherical D/N
Lens / 74.2°~30.0°
|
| Sensor |
1/3”
SONY Super HAD CCD |
| TVL |
480 |
| Min.
Illumination |
0Lux (IR LED ON at 2Lux) |
| Power
Supply |
DC
12V |
| |
|
|

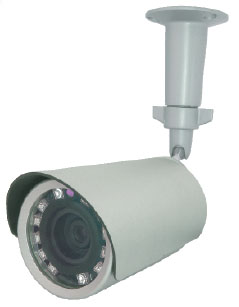

Outdoor
/ Indoor Wide Dynamic IR Camera |
|
Model
No. |
ASIC-WDI612 |
| Feature |
12 IR LEDs; Build-in DC Auto
IRIS Lens
Indoor: 50m; Outdoor: 30m
Standard Lens:f9~22.0mm/F2.0 Auto IRIS Lens
/ 29.2°~13.0°
|
| Sensor |
1/3”
RGB DPS |
| TVL |
480 |
| Min.
Illumination |
0Lux (IR LED ON at 2Lux) |
| Power
Supply |
DC
12V |
| |
|
|

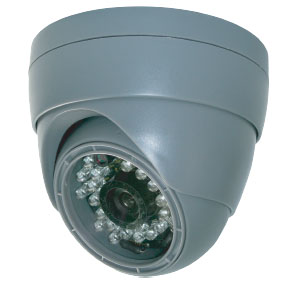

Indoor
IR Dome Camera |
|
|
Model
No. |
ASIC-I724D |
| Feature |
3D
Free Rotation
IR Distance 10~15m (24 IR-LED)
Standard Lens: f4.3mm/F2.0/63°;
Option: f6.0mm/47.5°, f8.0mm/36.5° |
| Sensor |
1/3"
Sony Super HAD Color CCD |
| TVL |
420 |
| Min.
Illumination |
0.4Lux@F2.0
(W/O IR); 0Lux (W/IR) |
| Voltage |
DC
12V |
|
|
|
|
Indoor
IR Dome Camera |
|
Model
No. |
ASIC-I712D |
| Feature |
12 IR LEDs; Indoor: 10m
Standard Lens: f4.3mm/F2.0;
Option: 3.6/6.0/8.0/12.0mm
|
| Sensor |
1/3”
SONY Super HAD CCD |
| TVL |
420 |
| Min.
Illumination |
0.2Lux@F2.0, 0Lux (W/IR)
IR LED ON at 2Lux |
| Power
Supply |
DC
12V |
|
|
|
|
Indoor
IR Dome Camera (High
Quality) |
|
Model
No. |
ASIC-I712DHQ |
| Feature |
12 IR LEDs; Indoor: 10m
Standard Lens: f4.3mm/F2.0;
Option: 3.6/6.0/8.0/12.0mm
|
| Sensor |
1/3”
SONY Super HAD CCD |
| TVL |
540 |
| Min.
Illumination |
0.35Lux@F2.0, 0Lux (W/IR)
IR LED ON at 2Lux |
| Power
Supply |
DC
12V |
|
|
|
| HQ
Outdoor Vandalproof Varifocal Color Dome Camera
(3-axis) |
|
Model
No. |
ASIC-I510HQ |
| Feature |
3D
Free Rotation
10
LEDs, IR Range 20m
Standard Lens: f2.9mm~10mm/F1.2 Aspherical D/N
Lens/ 94.6°~28.8°;
Option: f9mm~22mm/F1.5 Auto Iris Lens/ 29.2°~13.0° |
| Sensor |
1/3”
SONY Super HAD CCD |
| TVL |
540 |
| Min.
Illumination |
0Lux (IR LED ON at 2 Lux) |
| Power
Supply |
AC
90~260V |
|
|
|
|
Indoor
Varifocal IR Camera |
|
Model
No. |
ASIC-I952V |
| Feature |
10 IR LEDs; Indoor: 10~15m
Standard Lens:f3.8~9.5mm/F1.2 Aspherical D/N
Lens / 74.2°~30.0°
|
| Sensor |
1/3”
SONY Super HAD CCD |
| TVL |
420 |
| Min.
Illumination |
0Lux (IR LED ON at 2Lux) |
| Power
Supply |
DC
12V; AC 90~260V |
|
|
|
|
Indoor
Varifocal IR Camera (High
Quality) |
|
Model
No. |
ASIC-I952VHQ |
| Feature |
10 IR LEDs; Indoor: 10~15m
Standard Lens:f3.8~9.5mm/F1.2 Aspherical D/N
Lens / 74.2°~30.0°
|
| Sensor |
1/3”
SONY Super HAD CCD |
| TVL |
540 |
| Min.
Illumination |
0Lux (IR LED ON at 2Lux) |
| Power
Supply |
DC
12V; AC 90~260V |
|
|
|

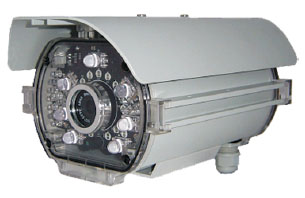

| Long
Range Outdoor IR Camera (60~80m) |
|
Model
No. |
ASIC-I680L |
| Feature |
7
Super Bright Large LEDs & 35 Wide LEDs
IR Range 60~80m
Fixed Lens C:8mm, D:12mm, E:16mm |
| Sensor |
1/3”
SONY CCD |
| TVL |
420 |
| Min.
Illumination |
0.1Lux / 0Lux (IR LED ON) |
| Power
Supply |
AC
90~260V |
|
|
|
|

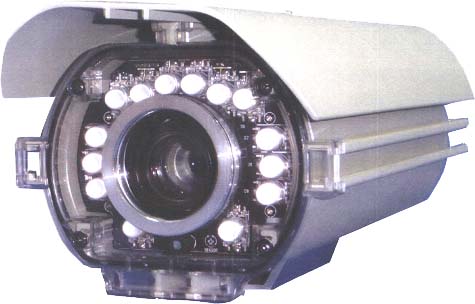

Long Range
Outdoor IR Camera (80~100m) |
|
Model
No. |
ASIC-I6100L |
| Feature |
14
Large LEDs
IR Range 80~100m
Fixed Lens C:8mm, D:12mm, E:16mm |
| Sensor |
1/3”
SONY CCD |
| TVL |
420 |
| Min.
Illumination |
0.1Lux / 0Lux (IR LED ON) |
| Power
Supply |
DC
12V; AC 90~260V |
